LED Light Switch Box - BR993(030201)

Item No.030201

FEATURE

The brightness level can be changed by pressing dimmer switch
Gunlock signal output as ten seconds.
Setting desired flash pattern according to requirement
Support for steady-on and flash patterns
Mini control box ,easy to install
S.A.E. Automotive-Grade Wiring
Color-coded, numbered wiring
Switch Controller Panel ,Light Controller Box
Application: Car and truck
Smart Switch Panel with a gun lock function
Installation: suction cup and 3 meters double sided type
Angle can be adjusted
The cream of the crop of the BR993 of digital switch panels!
S1-S6 output port (2A MAX)
Two kinds of programming models available.
Fully programmable for pursuit situations with hidden features as well (backlighting dimmer control switch and shotgun lock switch).
Measuring barely 2" thick, and with dimming capability, this is a must for undercover vehicles! 2 piece adjustable / swivel bracket included.

VOLTAGE: DC 10-30V

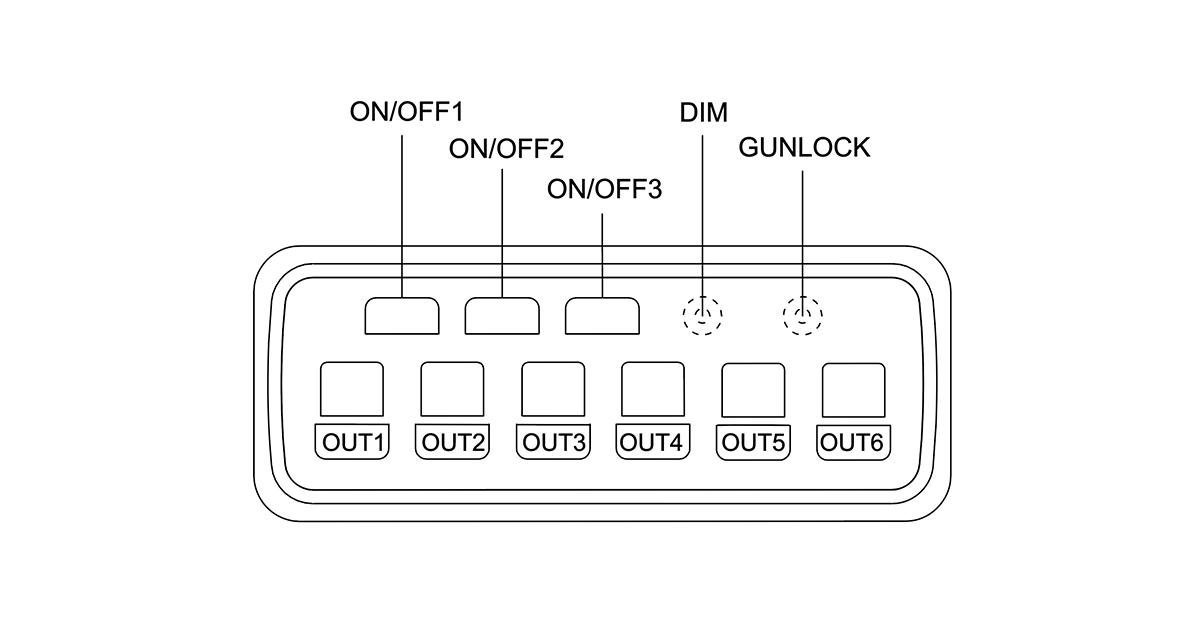

BUTTON
LOCK 4buttons
UNLOCK 1button
6 buttons set by yourself
OUTPUT: 8 Groups
TYPE : Smart Switch
MOUNT: adjustable bracket
MAX CURRENT
2 Group 2mA
6 Group 2A

Support for steady-on and flash pattern Rugged and waterproof This compact switch box features a solid-state switch panel with Self-diagnosis circuitry and a 15 watt-per-switch output rating.
